Specifications
Transmission Distance(HDTVI): 720p&1080p-200m
Category Type: UTP CAT 5/5E/6
Anti-interference: >60db
Compatible Format: BNC-M
Transmission Signal: 1 channel
Transmission Distance(HDCVI): 720p-300m;1080p-200m
Model Number: HD-305C-5
Twisted-pair video Connector: Push-terminal
Resolution: 720p/1080p
Item Code: 829490993
Category: Other Security Accessories
Description

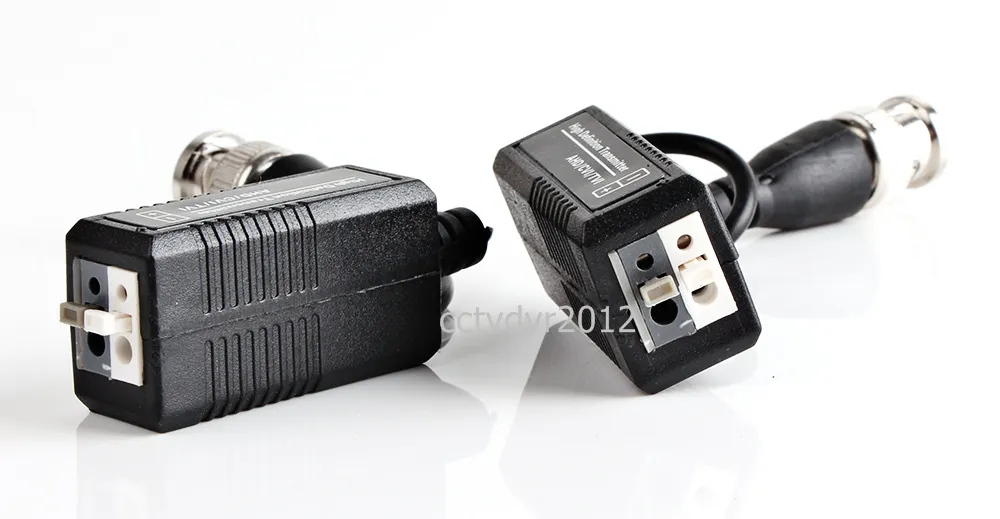

5Pairs High Definition BNC To UTP Cat5/5e/6 Video Balun HD Transceivers Adapter Transmitter Support 720P/1080P,AHD/CVI/TVI Camera 200m
Description
You are bidding on a set of HDTVI Coaxial to UTP Cat5/5e/6 balun passive adapter. This set of transceivers will allow you to transmit TVI 720P & 1080P HD video signal up to 200M (650ft) via Cat 6 cable, Cat 5E and 5 will be slightly less in distance capability. You will need a pair for each camera cable run.
Features
* Compatible with all digital HD-TVI, CVI, and AHD analog cameras* No power required* Color video up to 1000FT for HD-CVI 720P digital camera* Color video up to 650FT for HD-CVI 1080P digital camera* Color video up to 650FT for HD-TVI 720P & 1080P digital camera* Color video up to 1000FT for AHD 720 & 960 & 1080p analog camera* Push pin terminal connection for UTP cable* Built-in TVS (transient voltage suppressor) for surge protection* Anti-static wave filter design* Lightning protection design (GRADE III)* 60dB crosstalk and noise immunity; exceptional interference rejection
Specification
Physical properties
Dimension(L*W*H)
13.7*11.6*3mm
Shell
ABS
Color
Black
N.W.
60g
Stability
MTBF
>10000H
Environmental
Operating Temp.
-10 - 55 degrees
Storage Temp.
-20 - 70 degrees
Humidity
0-95%(non-condensing)
Properties
Transmission signal
1channel
Transmission distance
AHD/CVI:300m(max)
TVI:200m(max)
Category Type
UTP CAT5/5e/6
Video transmission properties and port
Coaxial video connector
BNC-M
Twisted-pair video connector
Push terminal
Compatible Format
AHD/HDCVI/HDTVI
Resolution
720P/1080P
Anti-interference
>60dB
Protection
ESD
1a contact discharge electricity level 3
1b air discharge electricity level 3
Per:IEC61000-4-2
Coaxial cable connector
2KV(common-code)Per:IEC1000-4-5
UTP Cable connector
2KV(different-code),4KV(common-code),Per:IEC1000-4-5
Impedance
BNC male
75Ohms
UPT cable
100Ohms
Package:
5pairs x AHD/HDCVI/HDTVI Video Balun
