Specifications
Item Code: 827333957
Category: Other Lighting Accessories
Description

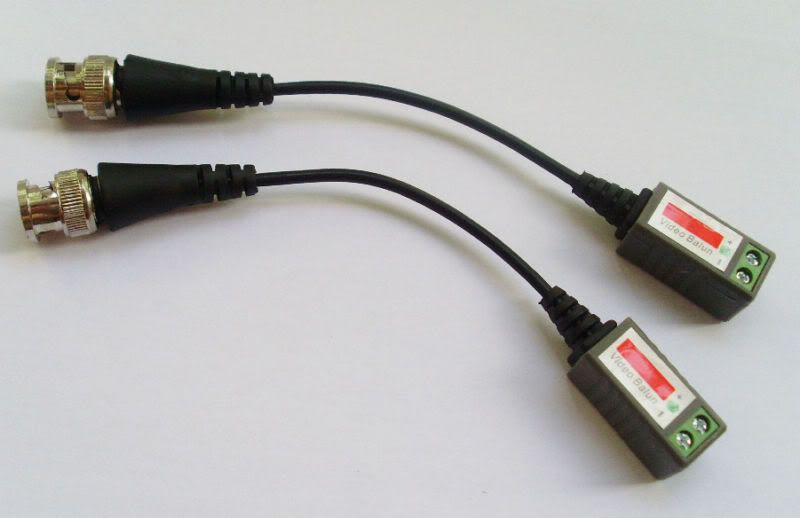

CAT5 CCTV Camera BNC Video Balun Transceiver Cable Network  No power required
Product Description

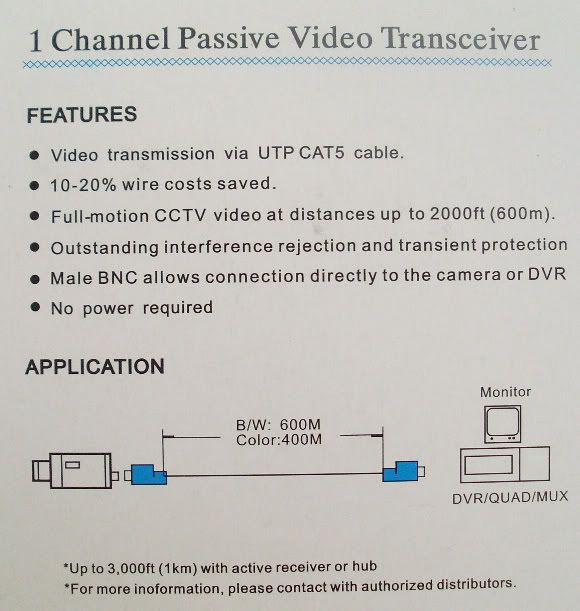

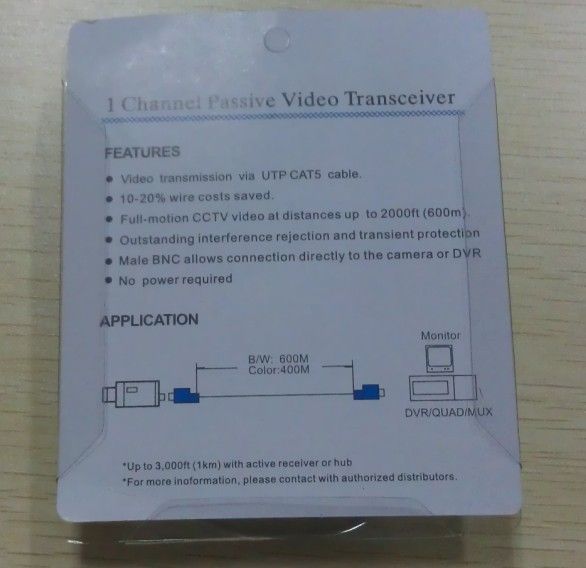

Video balun- Video transmission via UTP CAT5 cable- 10-20% wire costs saved- Full-motion CCTV video at distances up to 2000 ft(600m)- Outstanding interference rejection and transient protection- Male BNC allows connection directly to the camera or DVR- No power required
DC to 10 MHz
Attenuation
0.5dB type
CMRR
60 dB
Coax
Twisted Pair
100 ohms
StorgeTemperature
   -10 to +70
OperatingTemperature
  -30 to +70
Humidity
 0 to 95%
Unshielded Twisted Pair Wire:
24-16 AWG
Category Type
5or better
Impedance
 100 ohms
DC Loop Resistance
52 ohms per 1,000 ft
Differential Capacitance
19pF/ft  max
Material
ABS Plastic
1.84 (L)*0.54 (W)*0.6 (H) in (including BNC)
?
Packaging Details:

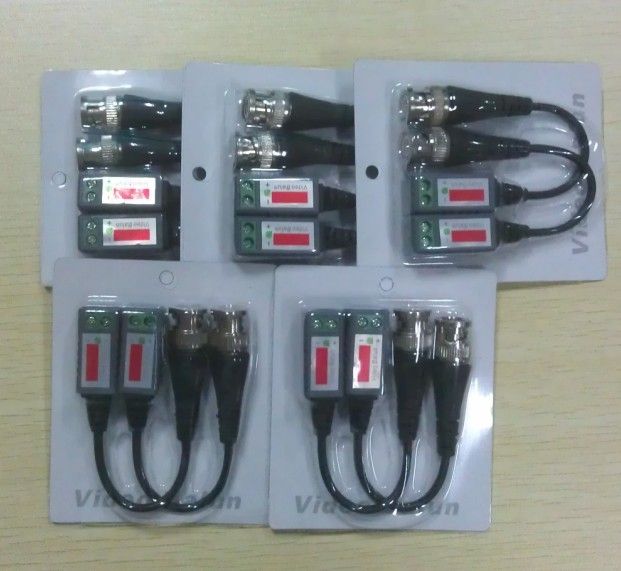

1Pair =2 pcs BNC Video Balun Transceiver Cable
</
